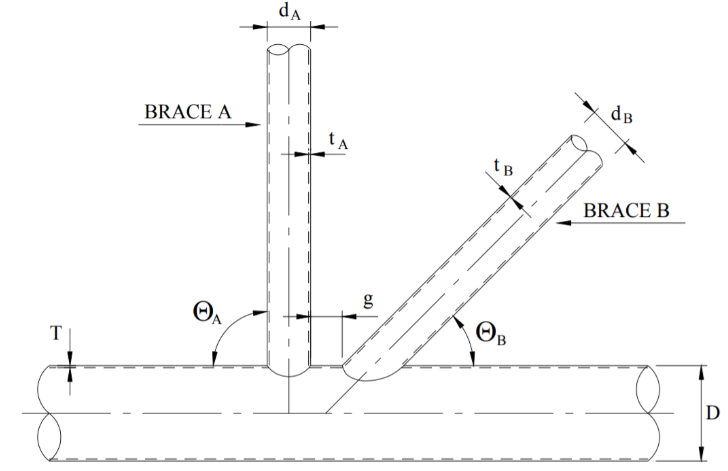

Header Image

Joint Properties

D:
T:
dA:
tA:
thetaA:
dB:
tB:
thetaB:
g_ab:
L:
C:

SCF calculation options

Joint loading:
X-axis variation:
SCF options:

Chord calculated properties

α = 2L/D = 10.0 (4 ≤ α ≤ 40)

γ = D/2T = 25.0 (8 ≤ γ ≤ 32)

BRACE A SCFs

chord-side

Plot

brace-side

$Plot$

BRACE B SCFs

chord-side

Plot

brace-side

$Plot$

Go Back

SCFs

		Axial Crown	Axial Saddle	IPB	OPB
Brace A	Chordside	5.03	5.03	3.73	10.03
Brace A	Braceside	3.67	3.67	3.49	7.58
Brace B	Chordside	5.03	5.03	3.73	10.03
Brace B	Braceside	3.67	3.67	3.49	7.58
