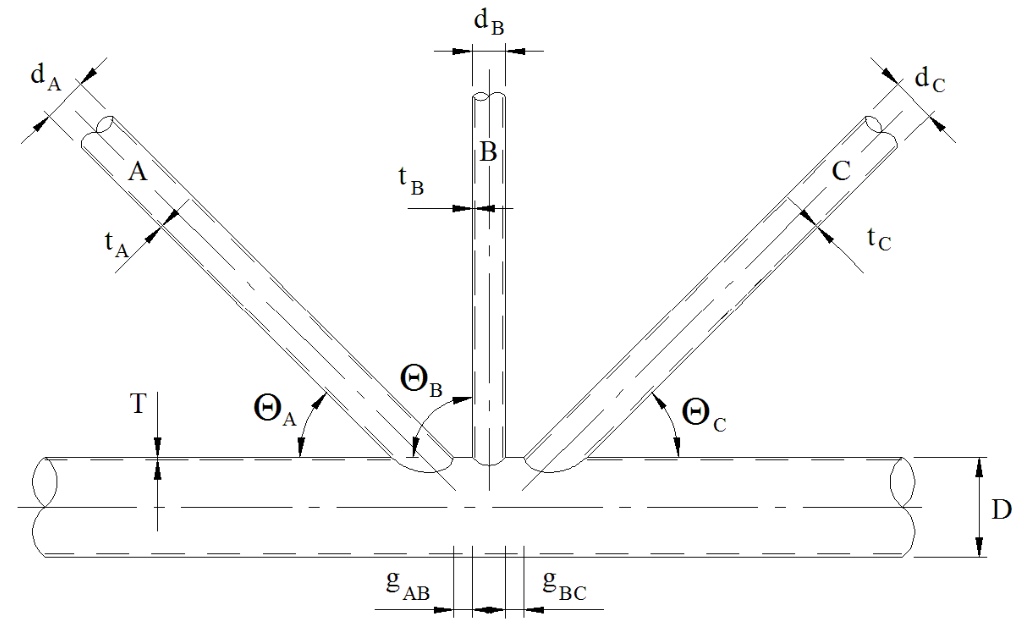

Header Image

Joint Properties

D:
T:
dA:
tA:
thetaA:
dB:
tB:
thetaB:
dC:
tC:
thetaC:
g_ab:
g_bc:
L:
C:

SCF calculation options

Joint loading:
X-axis variation:
SCF options:

BRACE A SCFs

chord-side

Plot

brace-side

Plot

BRACE B SCFs

chord-side

Plot

brace-side

Plot

Go Back

BRACE C SCFs

chord-side

Plot

brace-side

Plot

Go Back

SCFs

		Axial Crown	Axial Saddle	IPB	OPB
Brace A	Chordside	6.54	6.54	3.73	12.43
Brace A	Braceside	4.47	4.47	3.49	9.39
Brace B	Chordside	7.9	7.9	4.75	16.45
Brace B	Braceside	6.34	6.34	3.8	12.43
Brace C	Chordside	6.54	6.54	3.73	12.43
Brace C	Braceside	4.47	4.47	3.49	9.39
